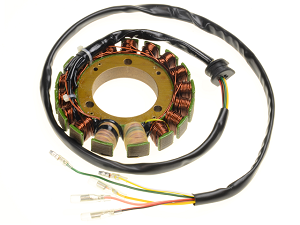

Honda XL250R XL350R XL400R XL500R XL600R Stator - CARG4101

  • Model: CARG4101 Honda XL Stator
  • Shipping Weight: 1kg
  • 2 Units in Stock
  • Manufactured by: Carmo
  • SKU: CARG4101
€167,59 Inc VAT
€138,50 Ex VAT
Qty :
+
-

Honda XL250R XL350R XL400R XL500R XR500R XL600R XR600R stator alternator
1 year warranty
Plug&Play


Size: 115/54/16 (Click for explanation)

Among others suitable for:
Honda XL250R stator alternator 1982 1983
Honda XL350R stator alternator 1984 1985
Honda XR350R stator alternator 1983 1984 1985
Honda XL400R stator alternator 1982
Honda XL500R stator alternator 1982
Honda XR500R stator alternator 1983 1984
Honda XL600L stator alternator 1983 1984 1985
Honda XL600R stator alternator 1983 1984 1985 1986 1987
Honda XR600R stator alternator 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Honda PD03 stator alternator


OEM numbers:
31120-KB7-004 / 31120-KB7-415 / 31120-KL3-004 / 31120-KG0-004 / 31120-KF0-004 /
31120-KF0-771 / 31120-KN5-416 / 31120-KN5-004 / 31120-KN5-406 / 31120-MC4-004 /
31120-KB7-405 / 31120-MG3-015 / 31120-MG2-005 / 31120-MG2-015 / 31120-MK2-005 /
31120-MK2-651 / 31120-MK2-741 / 31120-MN1-640 / 31120-MN1-650 / 31120-MN1-671 /
31120-MN1-681 / 31120-MN1-711 / 31120-MN1-831 / 31120-MN1-832

We manufacture a wide range of generators to fit new and older motorcycles.
Most of our generators are now supplied ready to fit with pre-installed grommet and connectors for quick and easy fitting.
We only fit OEM connectors.
All products supplied are new, eliminating the need for customers to send in the old ones.

Original color 1 Original color 2 CARG4101
B/R B/R B/R
R P P
Y/W W/Y W
Y Y/W Y
Ground (frame) Ground (frame) . G
G/R (to neutral switch)

R/B->Ground, original 230-320 Ohm / CARG4101 +/-135 Ohm

Team-Carmo

Digital ignition systems.


Our digital ignition systems come with 3 years warranty. Production errors, quality issues and internal problems are covered by this warranty.
The Carmo digital ignition systems are protected against high voltage peaks, defective HT coils and reverse battery connection.
This protection means that the Carmo digital ignition will not be damaged immediately in case of faulty electronics in your motorcycle.
Long term use of a motorcycle with faulty electronics may still result in damage to the Carmo digital ignition system.
This means that without solving the electrical issue the Carmo digital ignition could break down after a while.

If research shows that your Carmo digital ignition was damaged by faulty electrical parts, the warranty rights will not be valid.
If this situation occurs we will attempt to repair your ignition system in order to keep the costs as low as possible.
If the system is beyond repair a new product will be offered at a reduced price.
In all cases we will try our best to offer an acceptable solution.

Testing your original ignition module is free of charge when purchasing one of our replacement systems.
During the test we are often able to find out what caused your original module to break down.
This way you will know for sure if your original module really needs replacement, and you’ll be able to solve other electrical issues that may not be known yet.

Team Carmo.
